CONTROL TOUCH STUDIO HMI5''

Name: CONTROL TOUCH STUDIO HMI5''
Brand: EXALUX
SKU: CTL.003.003

Reference CTL.003.003

Brand EXALUX

WIRELESS DMX CONTROL PANEL BASED SOLUTION

1x 5" Wall-mount TFT Capacitive Touch display

1x DMX/CRMX din-rail mount remote unit

1x 24VDC/30W din-rail mount PSU

1x 5 years warranty

Key Features

5" Touch screen interface
1 univers DMX Console
CRMX Transmitter
DMX recorder
2 Trigger Inputs
2 Relays outputs

Key Benefits

Quick and easy installation and configuration
Combining several functionalities in a single unit
Designed for small TV studios, architectural and smaller spaces

Sold exclusively by our distributors

SH CODE: 85371091

Description
Product Details

Description

POWERFUL CAPABILITES

EXALUX™ CONTROL TOUCH provides user friendly and intuitive DMX/CRMX universal control that redefines the process of lighting control for small TV studios or radio stations.

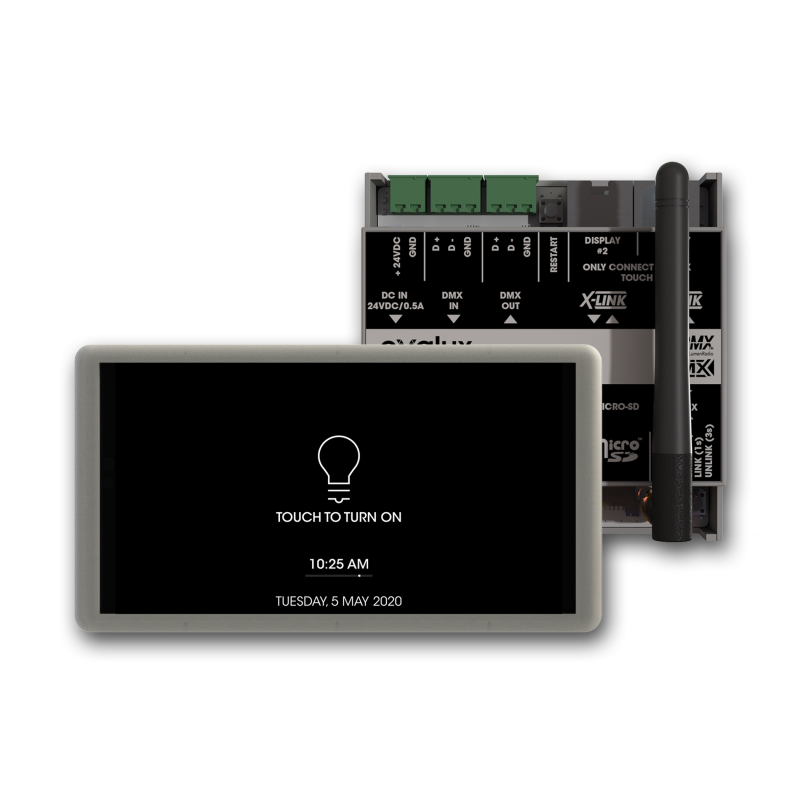

EXALUX™ CONTROL TOUCH includes the following elements :

#1 CONTROL HMI 5’’, the wall-mount touch controller (main),

#2 CONTROL HMI 5’’, the wall-mount touch controller (optional),

#3 CONTROL HUB, the interconnection box.

CONTROL TOUCH HMI 5''

EXALUX™ CONTROL HMI 5’’ is a wall panel mount touch controller designed for streamlined remote control of DMX fixtures in small TV, Web TV or radio studios with simplicity.

The unit offers a multi-apps interface in a compact and versatile solution.

CONTROL HUB

EXALUX™ CONTROL HUB is the core of the CONTROL TOUCH system.

The HUB powers and manages up to two HMI 5’’ controllers. The lighting fixtures are connected to the HUB through wired or wireless (CRMX™ by LumenRadio™) DMX link.

Furthermore, CONTROL HUB can manage hardware controls such as wall switches and relays.

This makes it possible to switch on the service lights, for example for maintenance, without having to operate the screen or a DMX console..

EXALUX DNA, Powered by LumenRadio™

Based on LumenRadio™ CRMX technology, EXALUX™ products brings DMX fidelity without any latency.

CRMX by LumenRadio™ Cognitive Coexistence technologies allows our wireless solutions to ensure optimum performance even when other wireless systems are operating in the same area.

WORK SAFELY, GET MORE FLEXIBILITY

The DMX input can be used to connect your DMX recorder, already installed or a backup console. If the X-LINK link goes down, the HUB automatically switches to the DMX input in order to keep control of the projectors.

CONTROL HUB specifications

Type: DIN rail DMX/CRMX Controler

DC Power Supply Range: 24VDC

Power Consumption: 5W (with 1 HMI5")

Housing: ABS-PC

Radio specifications

RF Protocol: LumenRadio™ CRMX

Antenna: External, 2.4GHz, 2.0dBi SMA (M)

Frequency: 2.402 - 2.480 GHz

Range: Up to 400m

-

I/O Connectors

Power Input : 2 position terminal block (3.81)

DMX in/out: 3 position terminal block (3.81)

Triggers in: 3 position terminal block (3.81)

Relay out: 3 position terminal block (3.81)

Antenna: SMA(F)

Dimensions

Dimensions : 98x88x47(Lxlxh)

Weight: 125g

IP Rate: IP20

HMI Control Panel

Display Type: TFT 5.0’’, 480x854, Capacitive Touch

Housing / Mounting: ABS PC / Wall or Panel mountable

DC Power Supply Range: 7-30VDC

Power Consumption: 2,1W (@24VDC)

Power / Data Connection: RJ45 (2)

Apps: DMX Console, DMX Recorder (8 memories), DMX ByPass

Dimensions

Dimensions : 140x76x25(Lxlxh)

Weight: 130g

IP Rate: IP20

Product Details

Reference CTL.003.003

Specific References

EAN13: 3760252033726
