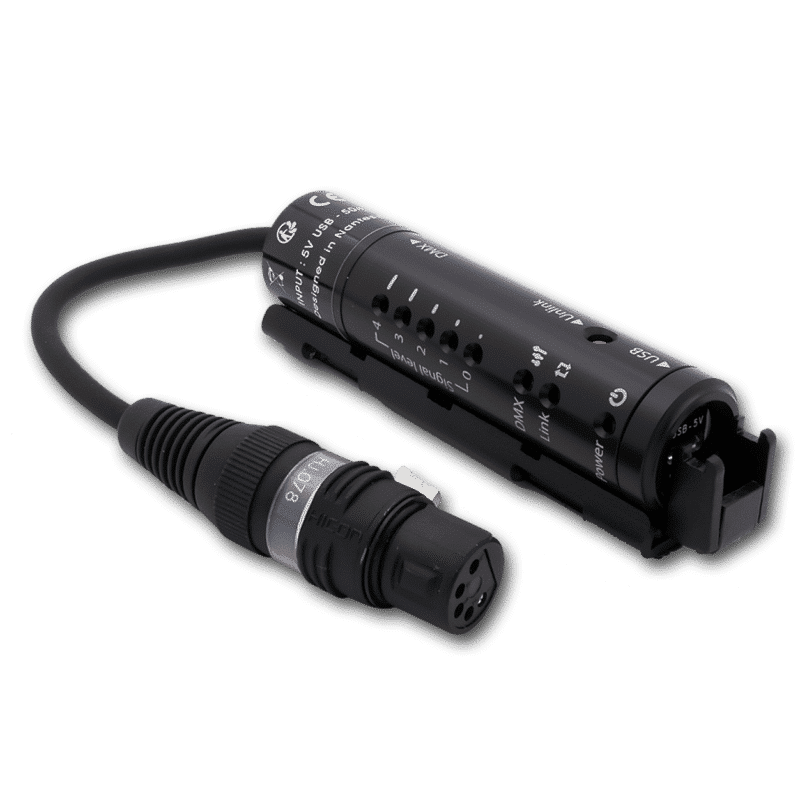

RX100S MK2

Name: RX100S MK2
Brand: EXALUX
SKU: CNT.000.005

Reference CNT.000.005

Brand EXALUX

SHOCK-PROOF WIRELESS DMX RECEIVER

USB-C Powered

5 years warranty

Key Features

1 DMX universe
5VDC power range
RF level indicator
Internal antenna
Cable Mount 5 Pins XLR Connector (DMX)

Key Benefits

Suitable for all LED fixtures thanks to the flexible “connector on cable” system
RF level indicator (5 LEDs) to set the receiver to the best position
Shock-resistant thanks to its built-in antenna and rugged housing

Also sold by our distributors

SH CODE: 85176200

Description
Product Details

Description

Back in action

The RX100S Mark II (available in 2025) features a new USB-C connector but above a new electronic circuit designed by GCE ELECTRONICS, improving RF range with an enhanced RF output stage and antenna.

The unit features a bracket to protect the USB-C connector from shocks during transport or operation.

The RX100S comes with a more robust USB-C connector.It can be powered either by the DMX device to which it is connected, or by an additional Powerbank battery.

EXALUX DNA, Powered by LumenRadio™

Based on LumenRadio™ CRMX technology, EXALUX™ brings DMX fidelity without any latency.

CRMX by LumenRadio™ Cognitive Coexistence technologies allows our wireless solutions to ensure optimum performance even when other wireless systems are operating in the same area.

Repair It Yourself

The RX100S has been designed to be fully self-repairable, extending the product's life and reducing electronic waste.

We have made all the necessary spare parts available on our website, gce-lighting.com. Easy to order and replace, they offer a simple, practical and environmentally-friendly solution for keeping your RX100S up and running.

Choosing the RX100S means you're supporting a brand that's committed to a circular economy, offering you reliable, repairable products designed to help preserve our planet, while meeting the demands of professionals.

General specifications

Type: Wireless DMX Receiver

DMX Protocol: DMX512-A (ANSI E1.11)

Power Supply Range: 5 > 5.5VDC

Housing: Polyoxymethylene, matte black finish

Radio specifications

RF Protocol: LumenRadio CRMX

Antenna: External, 2.4GHz, 2.0dBi

Frequency: 2.402 - 2.480 GHz

Range: Up to 200m

I/O Connectors

Power Supply: USB-C

DMX: Neutrik XLR 5Pts Female

Antenna: No connector

Dimensions & Weight

Dimensions: 250x24x24mm

Weight: 150g

IP Rate: IP30

Product Details

Reference CNT.000.005

Condition New

Specific References

EAN13: 3760252031883
